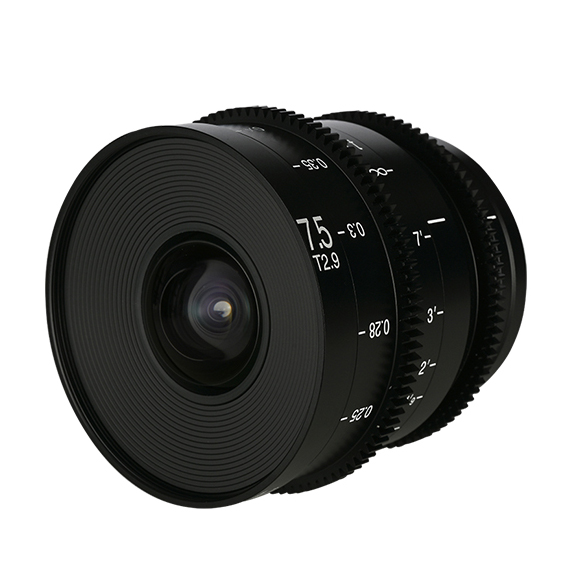

Laowa 7.5mm T2.9 Zero-D S35 Cine

Laowa 7.5mm T2.9 Zero-D S35 Cine is the widest rectilinear prime lens you can find in the Super35 market, covering 123° angle of view. It produces high quality images with “Zero-Distortion” and minimal chromatic aberration which filmmakers save a lot effort on post production. The non dome-shaped front element allows  77mm screw-in filters that makes filming handy.

How to use manual Laowa lenses on your camera?
->Read the FAQ

*Minimum 3 weeks delivery

SKU: LA702385 | LA702460 | LA702484 | LA702477 Category:

Description

Laowa 7.5mm T2.9 Zero-D S35 Cine offers the widest angle of view (123<strong>°</strong>) in the Super35 line-up. Having a large aperture of T2.9 allows filmmakers to shoot under low light situations and control the depth of field, making it suitable for shooting in a limited space or for establishing shots.

The “Zero-Distortion” feature enables cinematographers to shoot with straight lines retained, resulting in impressive image quality. This design is extremely useful when shooting architectural, aerial and indoor footage.

This optical design contains 16 elements in 10 groups, including 2 ED and 2 aspherical glasses for controlling chromatic aberration to the minimal. It renders outstanding and sharp images which saves a lot of time on post-production.

The relatively short focusing distance of 25cm/ 9.84” makes it ideal for focusing on close subjects with a strong background bokeh effect.

Endowed with a lightweight body, Laowa 7.5mm T2.9 Zero-D S35 Cine is exceptionally compact and transportable, measuring 3.17” (80.7mm) long and weighing less than 1.4 lb (610g). It can easily fit onto any stabilizations system, including handheld gimbals. It is also built to have a non-dome-shaped front element which allows 77mm screw-in filters to be directly attached, making it even more user-friendly and convenient, especially if you do aerial cinematography.

© Shikijo Petroski

© Peter Choi

7.5mm T2.9 filter thread

77mm filter thread for using with standard screw-in filters.

Industry standard 0.8 mod gears on both aperture and focus rings.

7.5mm T2.9 smooth focusing ring

Stepless aperture ring offers smooth iris control.

7.5mm T2.9 dual scale

Dual scale is printed on the lens body.

The lens comes with a weather-sealed box for hassle-free transportation. Users will be worrying about damage of the lens during transit.

Sample Footage


SPECIFICATIONS

Name Laowa 7.5mm T2.9 Zero-D S35 Cine
Focal Length  7.5mm
T-Stop Range T2.9-22
Format Compatibility S35
Angle of View 123°
Image Circle 29mm
Lens Structure 16 elements in 10 groups (2 ED glasses & 2asperical glasses)
Aperture Blades 7
Min. Focusing Distance 25cm/ 9.84”
Max. Magnification  0.05x
Filter Thread Φ77mm
Dimensions  ~Φ80 x 80.7mm (3.14 x 3.17”)
Weight ~610g (21.51oz) excluding front and back caps
Mount Sony E, Canon RF, Nikon Z, Fuji X
